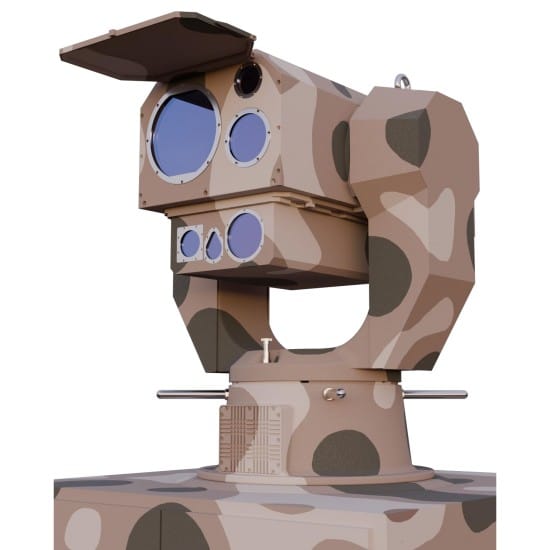

TANG-T1 Arm-mounting Equipment Details

T1 Laser Anti-Drone System Product Configuration Plan

1. Product Overview

The T1 Laser Anti-Drone System is composed of one laser unit, one high-intensity light emission tube, one coarse television and ranging module, one high-precision positioning gimbaled platform, one integrated control system, one water cooling unit, and one set of power supply batteries. The system utilizes long-pulse strong laser technology, integrating adaptive optical control, achieving modularity, easy maintenance, low cost, and long-duration laser emission. It boasts active control capabilities with high-quality beam spots, longer strike distances, stronger striking capabilities, better beam quality, and superior thermal control under the same power conditions. The modular design ensures the high reliability of the system, adaptability to various application scenarios, and the ability for quick maintenance and replacement. The system has visual tracking and targeting capabilities, enabling rapid detection and locking onto targets with higher tracking precision. It is equipped with resistance to shock, impact, salt fog, high temperatures, high humidity, and dust.

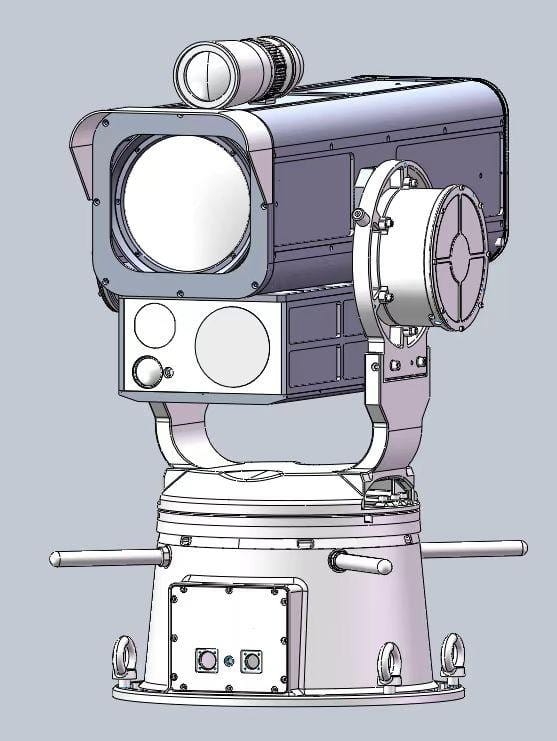

Picture for reference

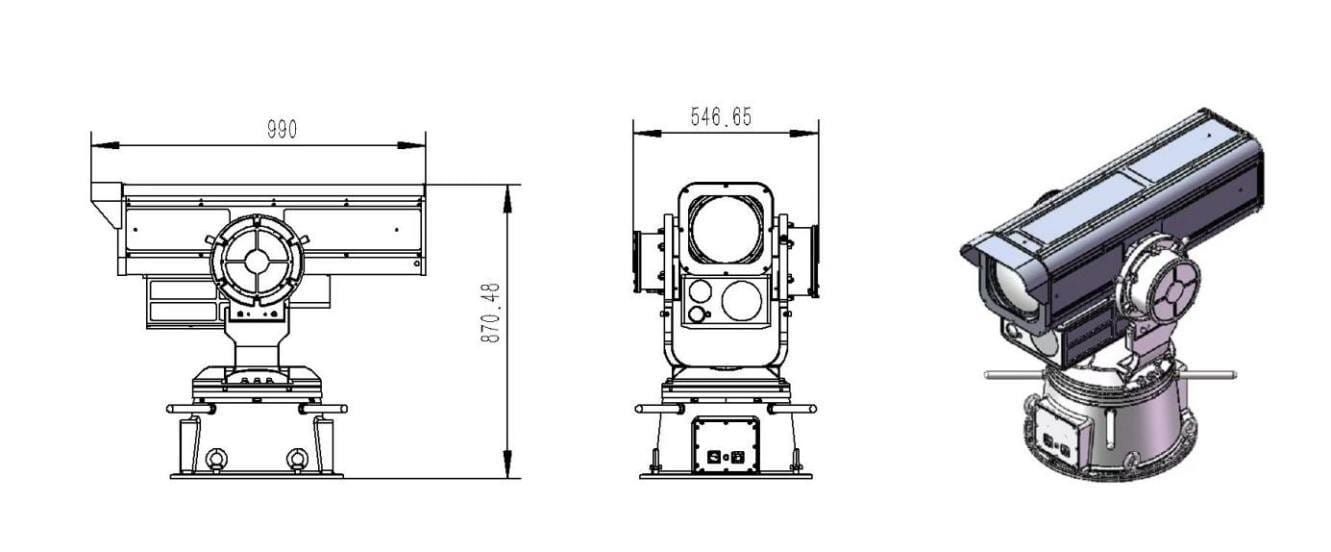

Picture for reference

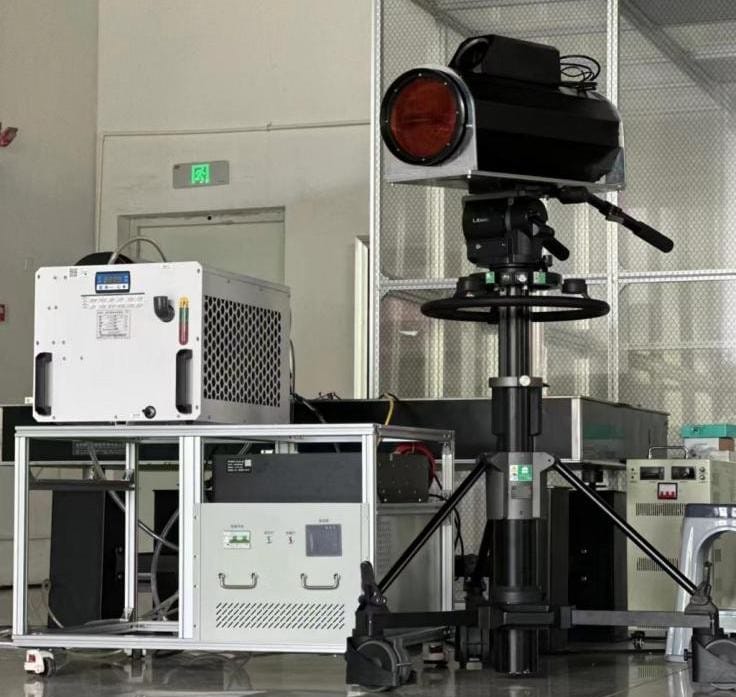

Picture for reference

System Features are as follows:
• Capable of targeting with or near the speed of light, achieving instantaneous hits, which
greatly reduces computational requirements and preparation time for strikes.
• Rapidly shifts fire, capable of attacking multiple targets in a short period, with flexible and
swift response.
• Highly concentrated energy with minimal collateral damage.
• The cost per strike is extremely low. This product employs several proprietary key technologies, based on a Chinese domestically
produced 1070nm 3kW laser, and features modular interfaces.
Product Advantages
• Suitable for the disposal of unexploded ordnance (by removing tracking equipment and
using a manual turntable, the cost is even lower);
• Long effective range; • High laser power;
• Long cumulative continuous laser emission time;
• High tracking precision;
• Long working time;
• Professionally designed casing that is aesthetically pleasing, lightweight, wind-resistant, sturdy, heat-resistant, corrosion-resistant, waterproof, and acid rain-resistant.
 Related Certificates
(1) Certificates of Technological Advancement
• Multi-stage Modular Beam Combination Device for High-Power Lasers
• Adaptive Optical Monitoring Device and Method for Array Beams
• Cyclonic Mirror Air Cooling Device
(2) Certificates of Quality and Reliability
• ISO9001 Quality Management System Certification

Product Performance

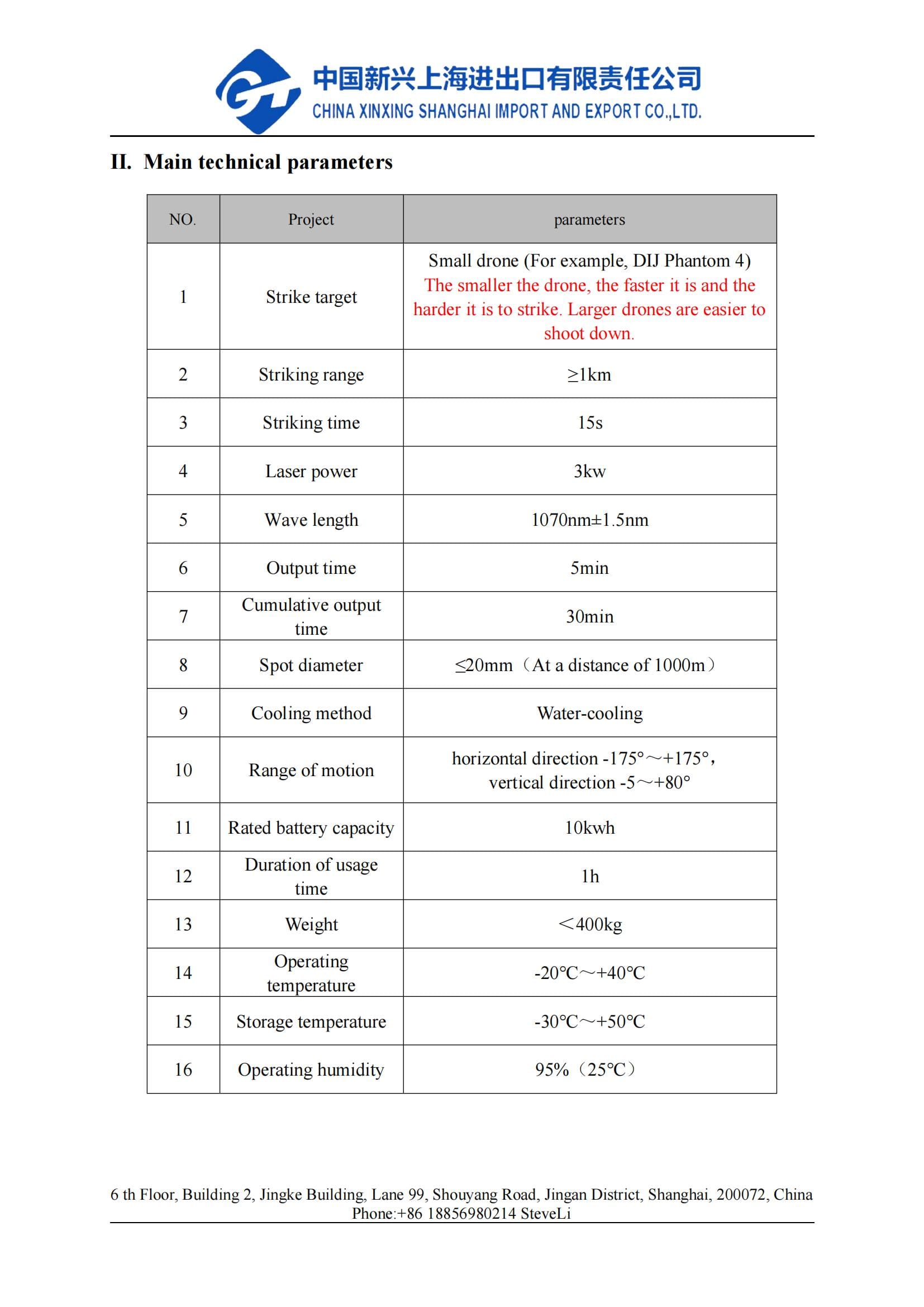

Main technical parameters
