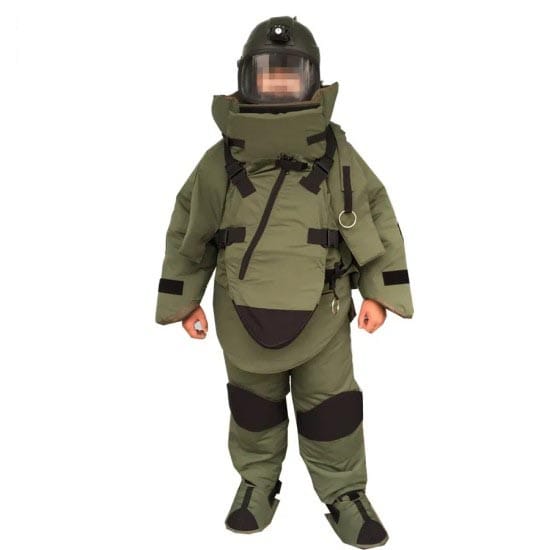

EOD Suit 01

High Performance Military Aramid Bomb Explosive Disposal EOD Suit

EOD01 is a high-performance explosion fragment protection equipment specially designed for military and high-risk environments. This system employs a three-layer composite armor material (aramid-PU outer layer, bulletproof fiber middle layer, and heat-resistant silicone inner layer), which can effectively resist the explosion impact and fragments of 82-2 standard grenades, with a protection radius of up to 3 meters. Suitable for scenarios such as bomb disposal operations, military exercises, and hazardous material transportation, it offers customized modular services (in terms of size, color, and function), with a lifecycle of up to 15 years.

Categories: Electronics & Technology Products, EOD, Police Electronics & Technology Product

High-Performance Military Aramid Bomb Explosive Disposal EOD 01 Suit

1. Basic Product Information
Product Name	EOD01
Model Number	ECS-1600-DW (Double Wall)
Primary Function	Military-grade explosive fragmentation containment and environmental protection
Compliance Standards	MIL-STD-810G, EN 13793:2003, NATO AEP-52 Vol.3
2. Physical Dimensions
Cover Blanket (Deployed)	1600±20mm (L) × 1600±20mm (W) × 12±2mm (Thickness)
Enclosure Structure	– Internal Diameter: ≥400mm – Wall Configuration: 50mm spaced double-wall with shock-absorbing gel – Height Adjustment: 300-600mm telescopic design
Folded Configuration	450mm (L) × 450mm (W) × 350mm (H) with quick-release compression straps
3. Material Composition
Outer Layer	1600D Aramid-PU hybrid weave with: – UV stabilization (3000hr QUV test) – Anti-static treatment (106-108Ω surface resistance)
Mid Layer	8mm cross-laminated polyethylene foam + Kevlar® mesh (320gsm)
Inner Layer	Silicone-coated fiberglass with: – 600°C continuous heat resistance – Chemical splash protection (acid/alkali pH2-12)
4. Mechanical Performance
Tensile Strength	Warp: 1380±30N / Weft: 1360±40N (ASTM D5034)
Tear Resistance	152N warp / 148N weft (ASTM D5587 trapezoid method)
Puncture Resistance	82J (ISO 13997 spike test)
5. Protective Performance
Explosion Containment	– Effective containment radius: 3000mm – Protection height: 1700mm – Tested with 82-2 standard grenade (6.5g PETN equivalent)
Environmental Resistance	– Waterproof: 14kPa hydrostatic pressure (72hr submersion) – Temperature range: -40°C to +120°C operational – Storage stability: -50°C to +150°C
6. Operational Data
Deployment Time	<30 seconds by trained personnel
Maintenance Requirements	– Annual visual inspection – 5-year comprehensive service – 200 folding cycles or 15-year material life
7. Packaging & Logistics
Shipping Configuration	– 2× IP67-rated polymer cases – Case dimensions: 470mm × 470mm × 360mm – Stackable design (max 4 high)
Weight Distribution	– System weight: 28.5kg (blanket 18.2kg + enclosure 10.3kg) – Shipping weight: 32kg (with protective packaging)
Pallet Loading	– 8 systems per standard EURO pallet (1200×800mm) – Maximum stack height: 2 pallets
8. Certification & Testing
Third-Party Certifications	– TÜV Rheinland (Explosive Containment Certificate No. ECC-2023-4578) – DNV GL Marine Approval (MRS-04532) – EMP Shielding Option: 30dB attenuation (1-18GHz)
Military Standards	NATO Stock Number available under ML-14 category
9. Optional Features
Sensor Integration	Pressure monitoring array (0-50psi range with Bluetooth telemetry)
Customization Options	– Color variants: Olive Drab (RAL 6003), Signal Orange (RAL 2004) – Surface printing: Custom unit markings up to 4 colors – Size variants: ECS-1400 (1400mm) and ECS-1800 (1800mm) available
