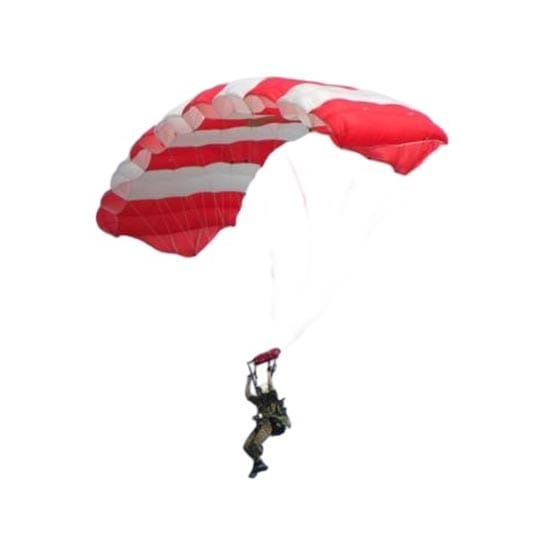

SBS-11 Tactical Ram-Air Parachute

Technical details：

1、Shape: Ram-air
2、Area： 24.8㎡
3、Canopy system： The Main and the reserve are integrated
4、Canopy color： White & red, gray
5、Deploy method：Two stage deployment, immediately deployment after leaving aircraft
6、Opener： QKS-4
7、Minimum open altitude： 300m
8、Aircraft speed： 180 ~ 320km/h
9、Operation altitude：≯3500m
10、Total operation weight： 70 ~ 145kg
11、Static line： 3.5m
12、Weight of assembly： ≯18kg
13、Opening shock： ≯10g
14、Level speed： 10m/s
15、When operation speed is 180km/h, maximum opening altitude of reserve parachute is 150m. The steady descent time is more than 6s.
16、Service & storage life: 5 years on shelf; service: 3 years/40 times.

Categories: Electronics & Technology Products, Military Products, Parachute, Police Electronics & Technology Product, Police Products

SBS-11 Tactical Ram-Air Parachute Details

SBS-11 ram-air parachute is designed for military combat and training. The main parachute and the reserve parachute of this system are stowed in one container, which not only enables SBS-11 to be deployed with higher aircraft speed but also makes it an easier system for students to handle. The enhanced load capacity and its high gliding ratio ensure this system is a state-of-the-art product domestically and an advanced product in the world.

Applying aircraft include Y-5, Y-8(C), An-26 and IL-76.

Constructions：

一	No.	Description	二	No.	Description	三	No.	Description
The Main System	1	Canopy	The reserve parachute	1	Canopy	Harness system	1	Container
	2	Suspension line		2	Suspension line		2	Harness
	3	Reefing slider		3	Reefing slider		3	Back cushion
	4	sleeve		4	Sleeve		4	Drogue ripcord
	5	Control line		5	Riser		5	Emergency cable
	6	Drogue connecting strap		6	Pilot chute bridle		6	Reserve parachute ripcord
	7	Drogue		7	Pilot chute		6	Reserve parachute ripcord
		Auto opener			Static line			Kitbag
