T500-998-K001-01 Cargo Parachute System

Specializing in Parachute Safety System Committed to Ensuring Low-Altitude Safety

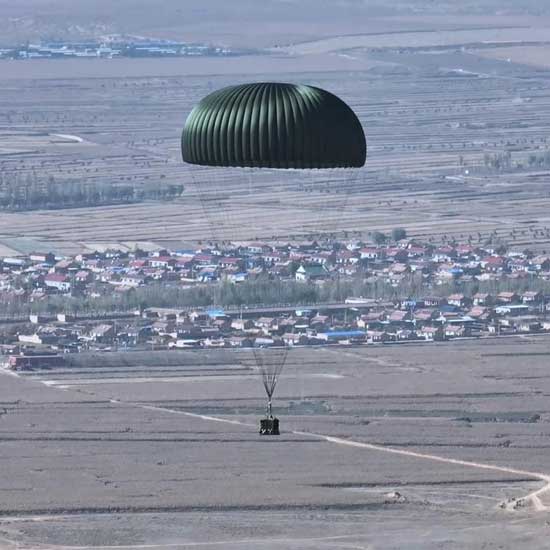

The T500-998 Cargo Parachute System is primarily used for the deceleration and stabilization of large platform airdropped cargo, safely transporting materials from the air to the ground to protect the goods from impact damage.
It is suitable for standard airdrop platforms as well as various other platforms.
The T500-998 parachute system features a main canopy with a diameter of 19.5 meters. The T500-998 can be used either individually or in groups (two or more units).
When used in a two-parachute configuration, it can support a payload of up to 1,588 kg (3,500 lbs).

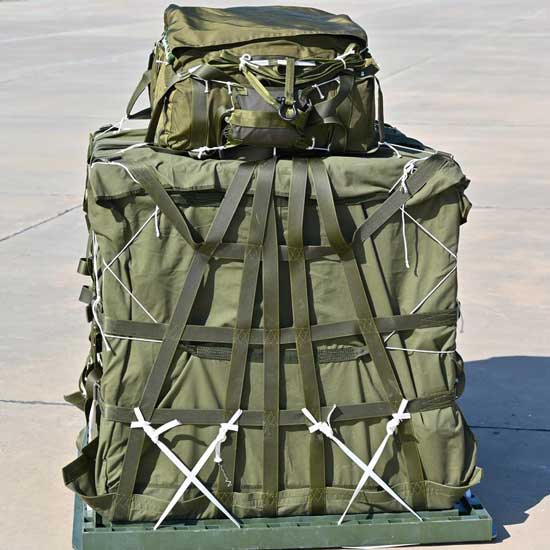

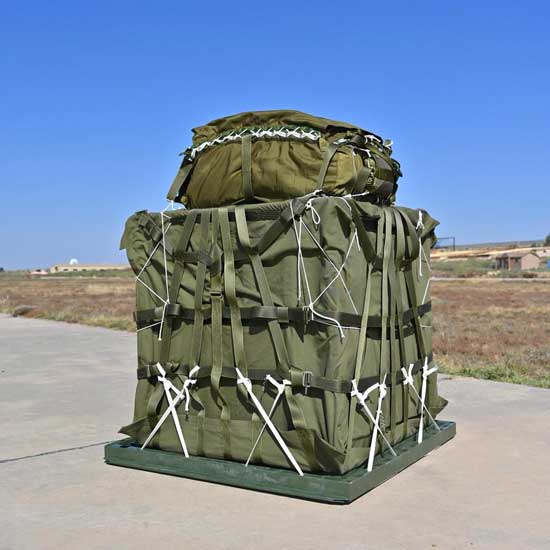

The adjustable captive net assembly consists of a captive net, a captive cloth with four tie-down straps, and four suspension risers.
The total weight of the assembly is 17.5 kg (38 lbs), with a load capacity of 998 kg (2,200 lbs).

Category Parachute

Model	T500-998-K001-01
Complete assembly weight	58 kg (128 lbs)
Packed dimension	0.89m0.61m0.30m(35in24in12in)
Packed volume	161L
Maximum payload capacity	998 kg (2200 lbs)
Minimum payload capacity	227kg (501 lbs)
Typical Deployment Speed	140 knots IAS
Shape	Flat circular
Diameter (nominal)	19.5 m (64 ft)
Gore material	2.25 oz, type I, nylon parachute cloth
Number of suspension lines	64
Suspension line materia	Type IV coreless nylon cord
Length of suspension line	15.5 m (51 ft)
Suspension riser assemblies	2
Deployment bag dimension	0.91m0.61m0.25m (35in24in12in)
Pilot chute shape	Flat octagonal
Diameter (nominal)	1.73m (68 in)
Canopy material	1.1 oz, type I ripstop nylon parachute cloth
Number of suspension lines	8
Suspension line material	Type III nylon cord
Deployment line length	2.82m (111in)
Static line length	4.57 m (15 ft)
Cargo bag assembly weight	17.5 kg (38 lbs)
Cargo net assembly capacity	998 kg (2200 lbs)
