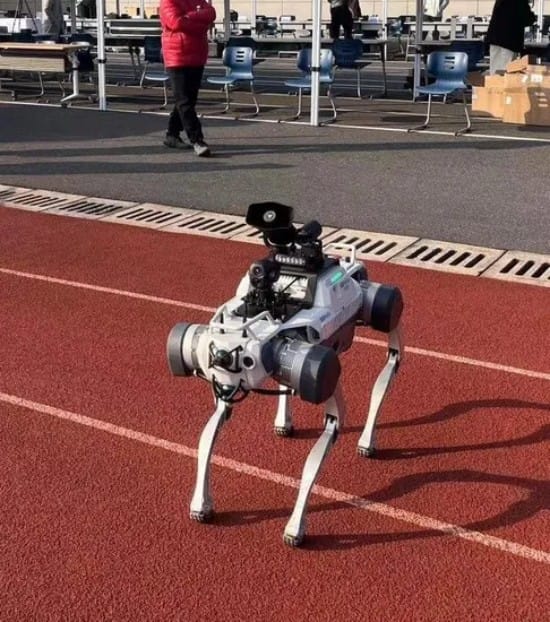

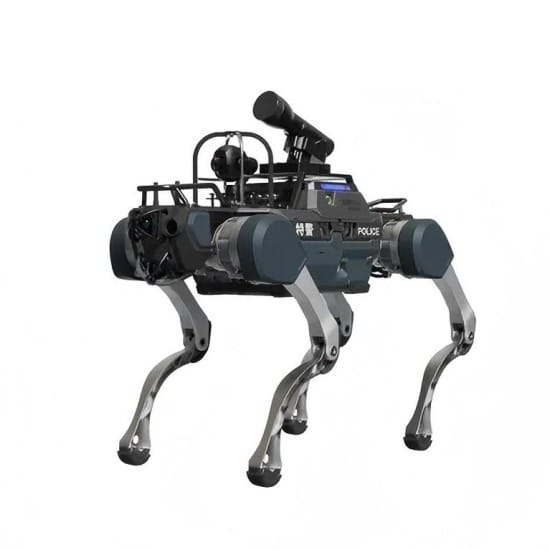

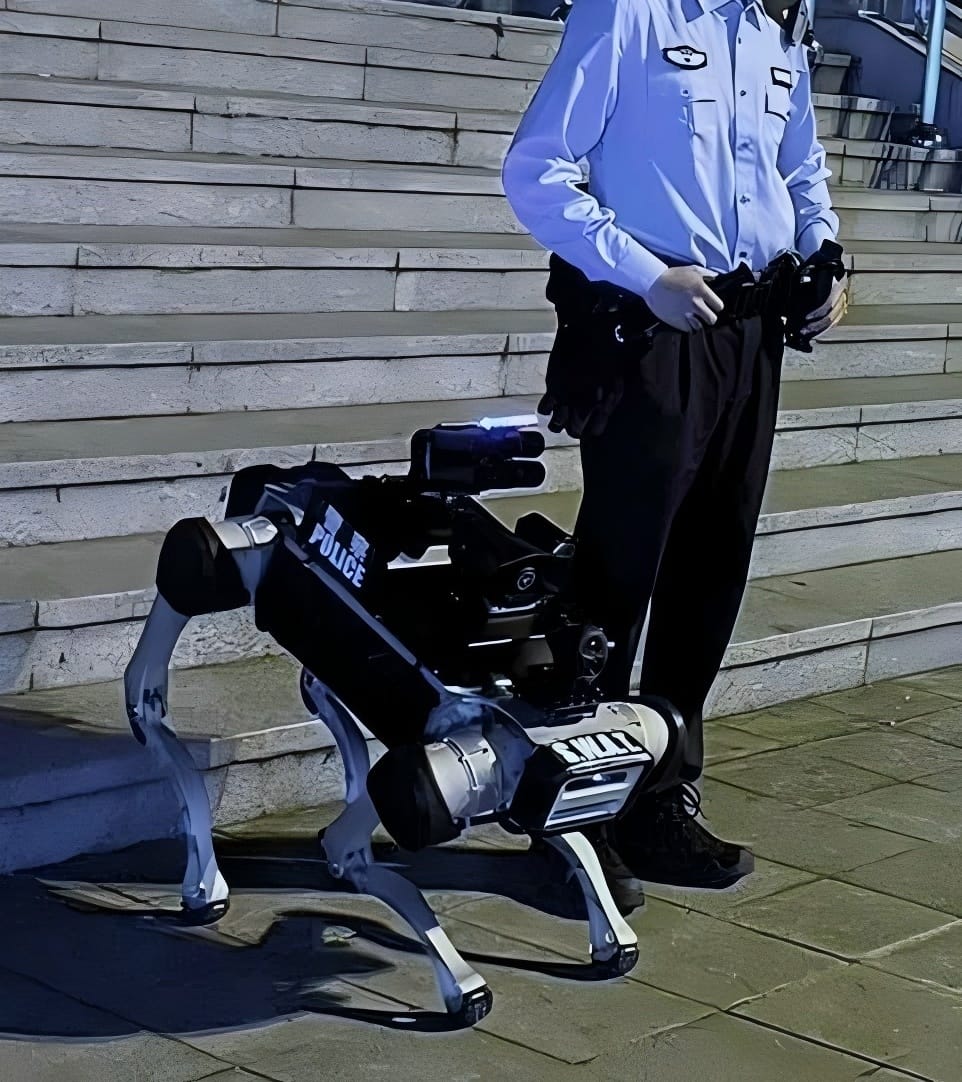

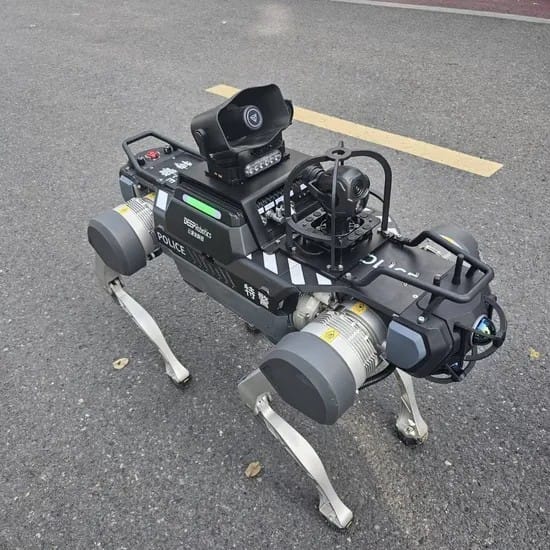

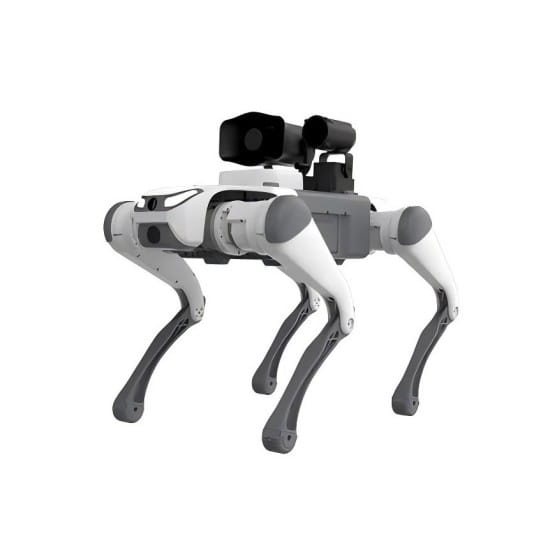

Robot dog  01 Details

 Protection mode:

– The tail is equipped with a one-button hard emergency stop button.

 – The control handle is equipped with soft emergency stop protection.

 – Supports fall protection, low voltage alarm, and over-temperature alarm.

– Integrated key module: Composed of a high torque density motor, high precision reducer, absolute encoder, and temperature sensor.

– Equipped with various movement gaits: Running, jumping, walking, climbing stairs, ascending slopes, crawling, and turning on the spot. The jumping distance can reach 70 cm, and the jumping height can reach 30 cm.

– Advanced full force control algorithm: Does not require plantar pressure sensors, resulting in low maintenance costs.

Main Parameters:

– Total weight: 12.2 KG (including battery)

– Cruise range: 4 KM

– Standing size: 610 x 370 x 436 mm

– Load capacity: 7.5 KG

– Cruise time: 1.5 to 2 hours

– Charging time: 40 minutes to 1 hour

– Battery capacity: ≥ 4.4 Ah

– Normal speed: 1.0 m/s

– Maximum speed: 2.5 m/s

– Communication interfaces: Ethernet, WiFi

– Output power: 5V / 12V / 24V

– Movement performance: Can climb continuous stairs with a step height of 15 cm

– Multiple movement gaits: Capable of climbing slopes ≥ 40°

– Integrated key modules: Consisting of high torque density motor, high precision reducer, absolute encoder, and temperature sensor

– Various display actions: Including forward jumps, upward jumps, twist jumps, spacewalks, etc. The jump distance can reach 50 cm, and the jump height can reach 30 cm.

– Supports walking on complex terrains: Such as cement and gravel; adopts an advanced full-force control algorithm, does not require plantar pressure sensors, resulting in low maintenance costs.
