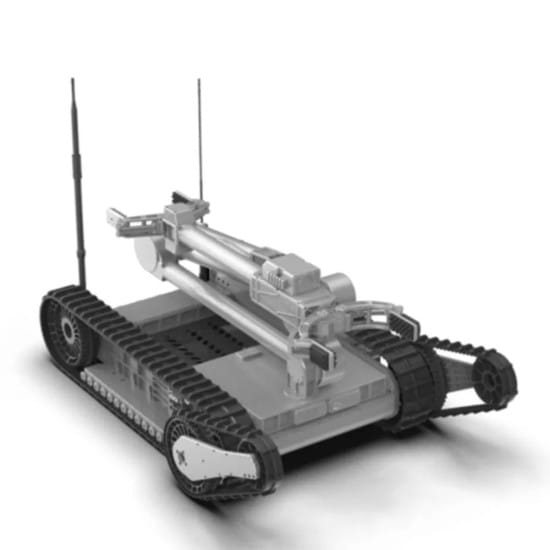

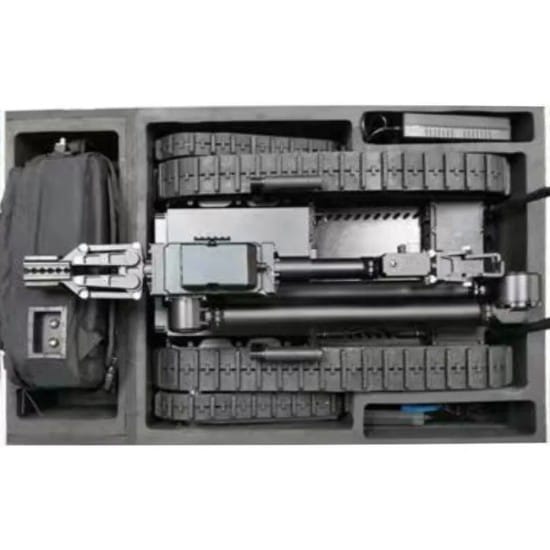

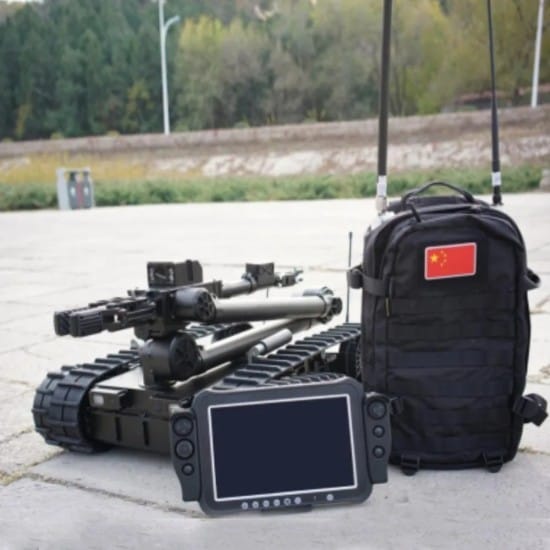

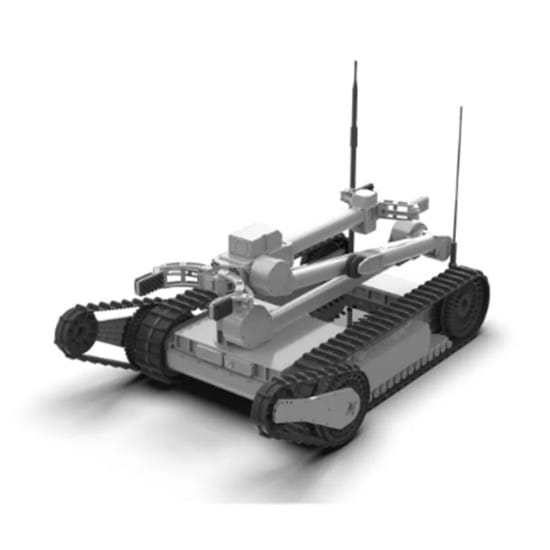

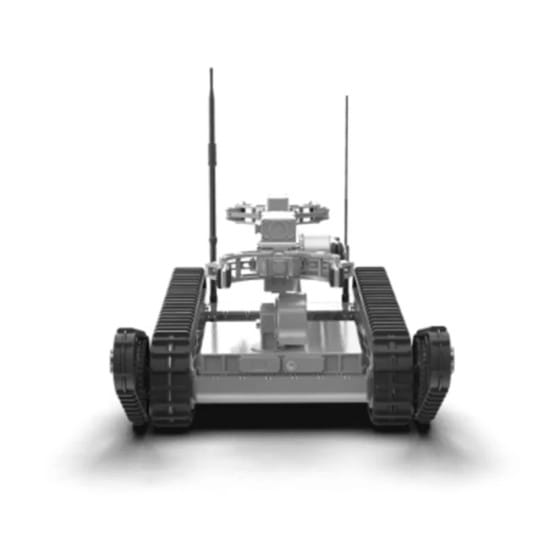

EOD R 02
EOD R 02 EOD Robot is the only small and medium-sized EOD robot that has a double gripper design, super multi-perspective function, and integration of reconnaissance, transfer, and disposal. As a size EOD robot, HJ-RBOT710 has a small volume, weighing only 37kg; but its operating capacity has reached the standard of a medium-sized EOD robot, and the maximum grabbing weight is up to 16 kg. The Robot is not only structurally robust and lightweight, but also meets national military requirements in many aspects such as dust prevention, waterproofing, and corrosion protection.
EOD R 02 Details
| No. | Category | Parameter Name | Parameter Index |
| 1 | Structural | Robot size | ≤ 830mm×600mm×460mm (Fully retracted) |
| Controller size | ≤360mm×210mm×70mm | ||
| Robotic arm length | ≥ 2400mm (With extension joints, fully extended) ≥1700mm (Without extension joints, fully extended) | ||
| Robot weight | ≤37kg (Including two batteries) | ||
| Controller weight | ≤ 2kg (Excluding backpack) | ||
| 2 | Mobility | Maximum speed | ≥1.8m/s, (5 gear shifting, continuously variable speed) |
| Vertical leaping over height | 400mm | ||
| The width of leaping over trench | 400mm | ||
| Gradeability | 50º | ||
| Climbing stairs | 50º | ||
| 3 | Grabbing | Robotic arm flat stretch | ≥6kg |
| Robotic arm retracted | ≥16kg | ||
| Maximum clamping force | ≥300N | ||
| Maximum clamping width | ≥160mm |
