JLS5103XFB Anti-riot Armored Vehicle Details

JLS5103XFB anti-riot armored vehicle adopts Dongfeng EQ2 chassis, 4.0mm bulletproof body, 39mm PC type bulletproof glass, and is equipped with various police equipment such as police lights, sirens, color-changing strobe lights, square police lights, etc. The armored design of the vehicle has a strong sense of deterrence, high space utilization, spacious interior space, and luxurious interior. Its bulletproof performance meets the C-level requirements of the Ministry of Public Security’s GA668-2006 “General Technical Conditions for Police Anti-Riot Vehicles” and can withstand defenses as close as 20 meters away. The Type 95 rifle attacks with Type 87 5.8mm ordinary bullets; it has strong power, good maneuverability, and strong off-road capabilities; the vehicle is designed with 4 doors and 10 windows and is highly practical, making it an ideal anti-riot armored vehicle for the military and police.

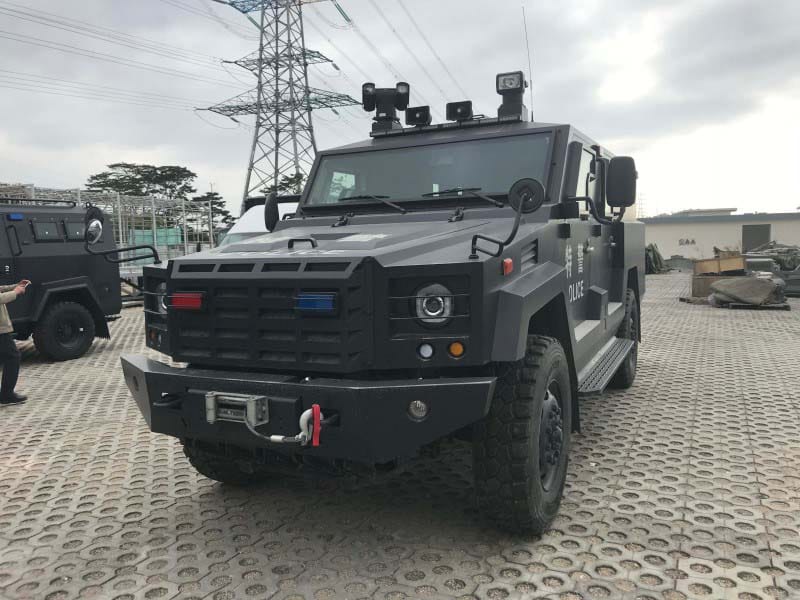

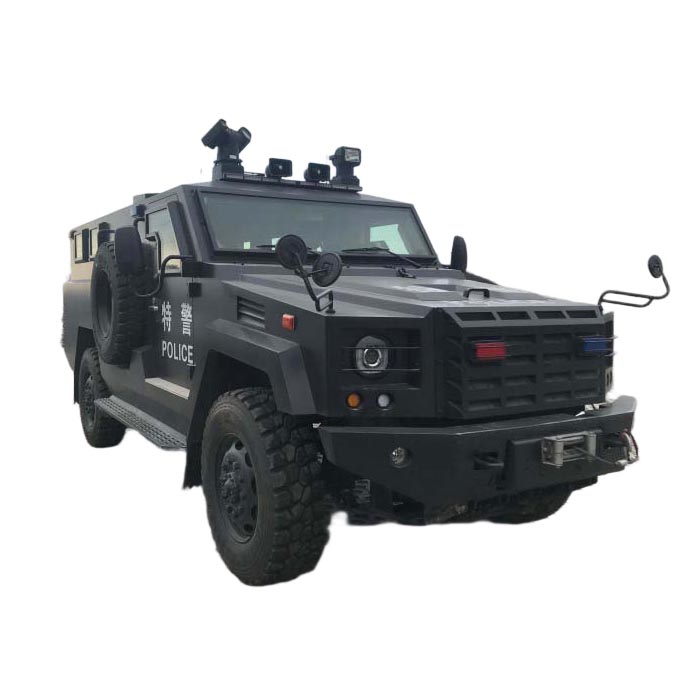

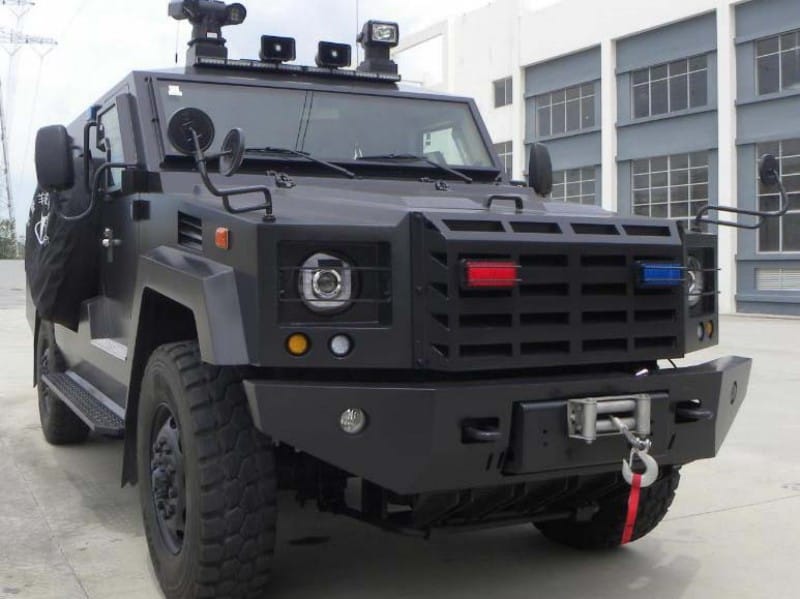

JLS5103XFB Anti-riot Armored Vehicle Appearance And Internal Layout

JLS5103XFB Anti-riot Armored Vehicle Main Function Description

1. Bulletproof armor: The vehicle’s passenger area, fuel tank, water tank, and engine compartment are C-level bulletproof. Both sides of the vehicle body and the tailgate are equipped with bulletproof shooting holes, which can withstand attacks from Type 95 rifles and Type 87 5.8mm ordinary bullets; bulletproof off-road wheel assemblies, A wheel bullet-proof continuation device is installed inside the tire, which allows the vehicle to continue driving after a tire blowout.
2. Warning device: composed of color-changing strobe lights, square police lights, sirens, speakers, etc.
3. Safe troop transport: The interior space is spacious, and the vehicle is rated to carry up to 12 people.
4. Air exchange system: It consists of a cooling fan and an overhead air-conditioning evaporator, combined with foaming sound insulation and heat insulation of the vehicle frame.
5. Engine room fire extinguishing: The engine room is equipped with an automatic fire extinguishing device to enhance engine fire protection.
6. Others: Search lighting, reversing rear view assembly, surveillance camera system\electric winch, etc.

JLS5103XFB Anti-riot Armored Vehicle Technical parameters

JLS5103XFB Anti-riot Armored Vehicle Basic configuration

(1) Vehicle structure
1. The whole vehicle is bulletproof: The whole vehicle is built with a carbon steel square tube frame, and a 6.5mm bulletproof skin plate is used for external welding. It has high strength, good bending and torsion resistance, and a full range of C-level bulletproof, which can withstand Type 95 rifles and Type 87 5.8 mm normal bullet attack. Properly handle locations where bulletproof leaks are likely to occur in transitional installation locations such as car doors and bulletproof glass, leaving no gaps for theoretical bullet penetration.
2. Engine compartment:
A bullet-proof grille made of bullet-proof panels is installed directly in front of the engine water tank. On the basis of ensuring the cooling and ventilation of the engine, the structure also has a zigzag channel, which not only prevents bullets from entering from the front, but also prevents bullet fragments. Jump into the engine compartment. There are hidden grilles on both sides and top of the cabin that can dissipate heat and be bulletproof. In order to facilitate engine inspection and maintenance, it is equipped with a wide-body gas spring-assisted manual folding hood, and the opening of the hood can be controlled remotely from the driving area.
3. Bulletproof glass windows:
All glass windows of the vehicle are made of PC-type bulletproof glass assemblies, equipped with steel glass frames and sealing strips, and are fixed with the vehicle body with bolts. It is very convenient to disassemble and replace the glass windows without damaging the vehicle body paint. Pack.
4． Bulletproof shooting hole:
The closed outer baffle of the shooting hole is made of thickened bulletproof plate. It has an outward-turned structure. The barrel can be extended and aimed without any obstacles, which can meet the shooting requirements of 95 rifles. The built-in hinge can prevent violent prying; lever type The locking is safe and reliable.
5. Bulletproof protection of the fuel tank:
Use bulletproof plates to make a box-shaped protective cavity to cover the surroundings and bottom of the fuel tank to prevent bullets from penetrating the fuel tank and causing fires.
6. Bulletproof tire assembly:
It adopts military off-road pattern tires. This tire is particularly suitable for poor roads and non-paved roads. The tires are equipped with bulletproof supports. When the bullet penetrates the outer tire and there is no internal pressure, the vehicle can still travel 30 to 40km. /h speed, continuous driving of more than 50Km.
7． Car roof rotating sunroof:
The car roof is equipped with a round bulletproof rotating sunroof, which can be manually rotated freely to an unlimited extent. The skylight rotating body is equipped with a bracket to install an anti-riot transmitter.

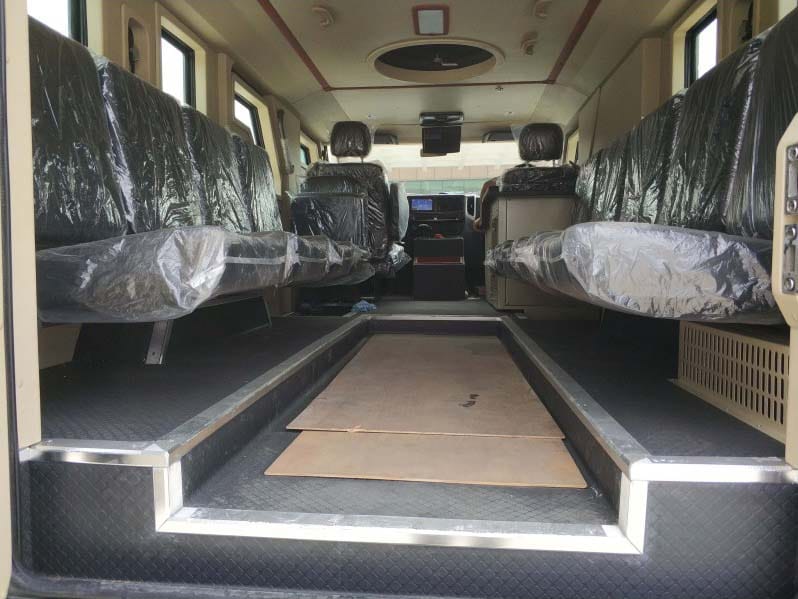

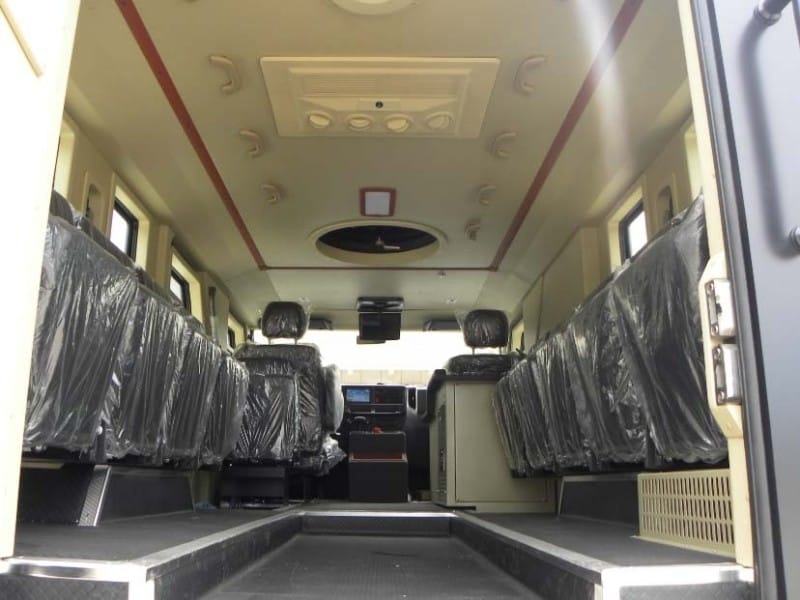

8. Cabin interior:
The space between the passenger area body and the interior interlayer is filled with polyurethane foam, which gives the vehicle good heat insulation, noise reduction and shock absorption properties; the entire vehicle interior is soft-covered in leather, and the interior is a light-colored air-pressed special lightweight Quality material interior panels, windows Soft material interior ring, luxurious and beautiful; the passenger cabin floor is composed of bulletproof steel plate + sound insulation and heat insulation rubber plate + anti-corrosion thick bamboo board + floor covering. The floor covering can choose silicone plate or patterned aluminum plate, both of which are non-slip and wear-resistant. and impact resistance.
9． Seats:
The seats are arranged in a 2+1+9 combination. The driver’s and co-driver’s seats are single seats, the middle left seat is a folding seat, and the driver’s seat is in a back-to-back structure. There are 9 seats facing each other in the rear compartment. The reversible single seat can be folded and stowed to free up space in the rear compartment.
10． Armrest:
It is divided into grab handles for each door outside the car when getting in, grab handles when riding inside the car, grab handles when opening and closing the doors, and grab handles for folding the roof. The folding handle on the roof can be folded and flipped at 90° for rear seat passengers to hold. When not in use, it can be folded and stowed away without affecting the interior space.
11. Steps for getting in and out of the car:
There are steps under each door outside the car to make it easier to get on and off the car.

JLS5103XFB Anti-riot Armored Vehicle  Warning System

JLS5103XFB Anti-riot Armored Vehicle Audio And Video System

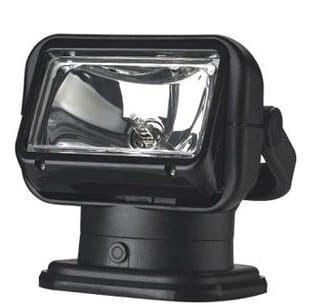

JLS5103XFB Anti-riot Armored Vehicle Strong Search Light

The roof is equipped with an SJH135T xenon strong light search light with a power of 35W and an effective illumination distance of 140m. The light head can be switched and rotated wirelessly within a range of 50m. There is no dead angle in horizontal rotation. It can rotate within a 380° range and up and down within a 100° range. swing.

JLS5103XFB Anti-riot Armored Vehicle Air Conditioning And Ventilation System

1. Driving area air conditioner: The air outlet is located on the front and below the instrument panel, and the knob is used to switch between cold and warm air.
2. Passenger area air conditioner: The cold air is an independent 4000 kcal air conditioner evaporator, and the air outlet is located at the rear of the inner roof. The heater is also an independent heater, and the air outlet is arranged under the seat, which greatly improves the comfort of the heater in the cabin.
3. Ventilation system: Electric intake and exhaust fans are arranged on the roof and rear of the car for forced exchange of indoor air.

JLS5103XFB Anti-riot Armored Vehicle Power System

1. Main power switch: When the vehicle is parked for a long time, it is set to prevent battery leakage, electromagnetic 180A.
2. Inverter power supply: installed in the cabinet, XP-1.0KVA/24V Anderson pure sine wave inverter, input voltage DC24V, output rated power: 1000VA, output voltage AC220V.

JLS5103XFB Anti-riot Armored Vehicle Fire Extinguishing System

1. Fire extinguishing dry powder cans: 2 fire extinguishing agents are placed in front of the second row of seats to deal with sudden fires in case of emergency.
2. Automatic fire extinguishing system: 2 fixed aerosol automatic fire extinguishing devices specially designed for automobiles are installed in the engine compartment of the car to enhance the safety protection of the entire vehicle. When the temperature of the protected area reaches 138°C or an open flame is encountered, the electronic trigger device will automatically turn on and erupt aerosol to achieve the purpose of efficient fire extinguishing. This device causes no pollution or damage to the car.

JLS5103XFB Anti-riot Armored Vehicle Camera Surveillance System

JLS5103XFB Anti-riot Armored Vehicle Other

Appearance color and logo: Painted according to police appearance standards, the paint color of the entire vehicle is SWAT blue, and police badges and police characters are affixed on the front and both sides of the vehicle.
