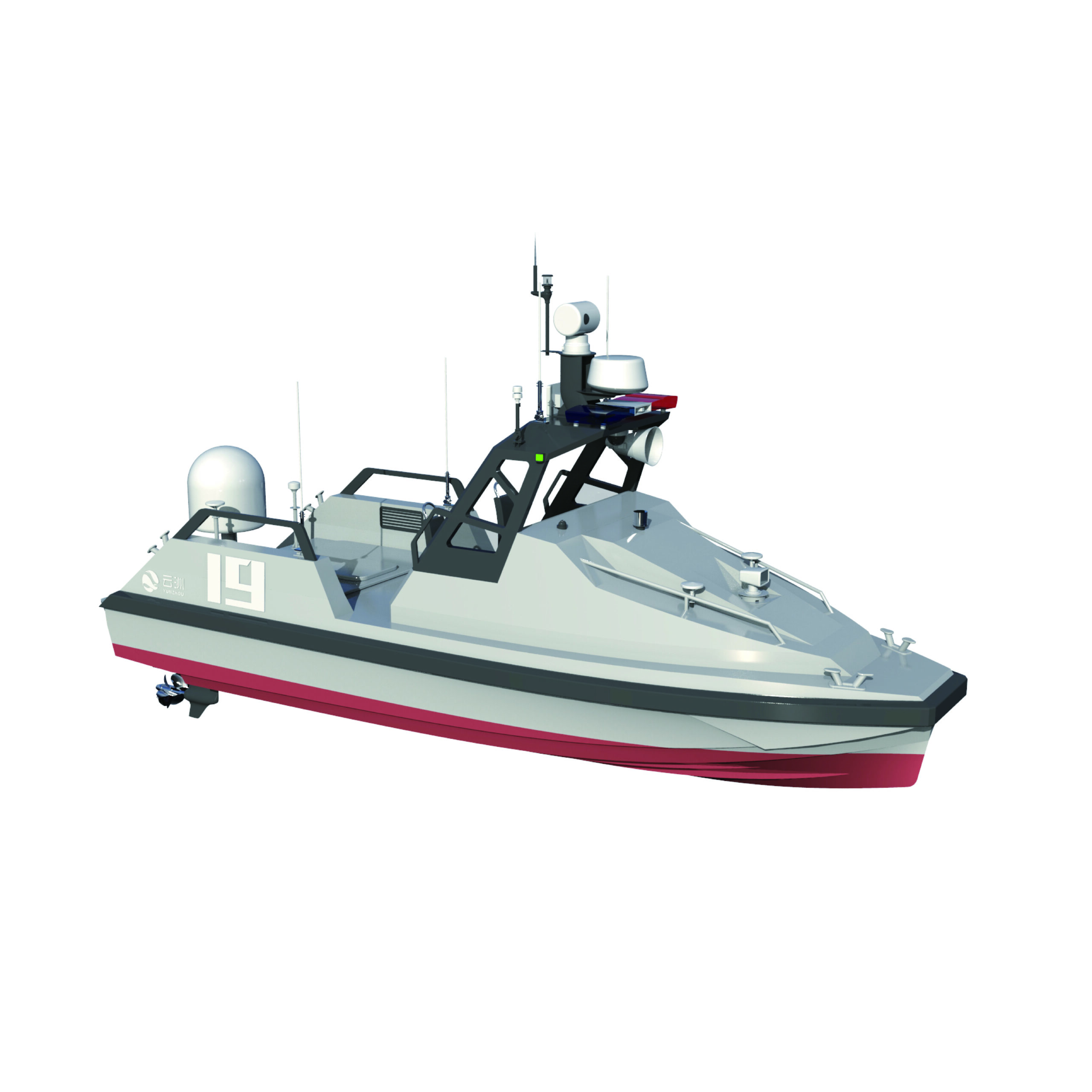

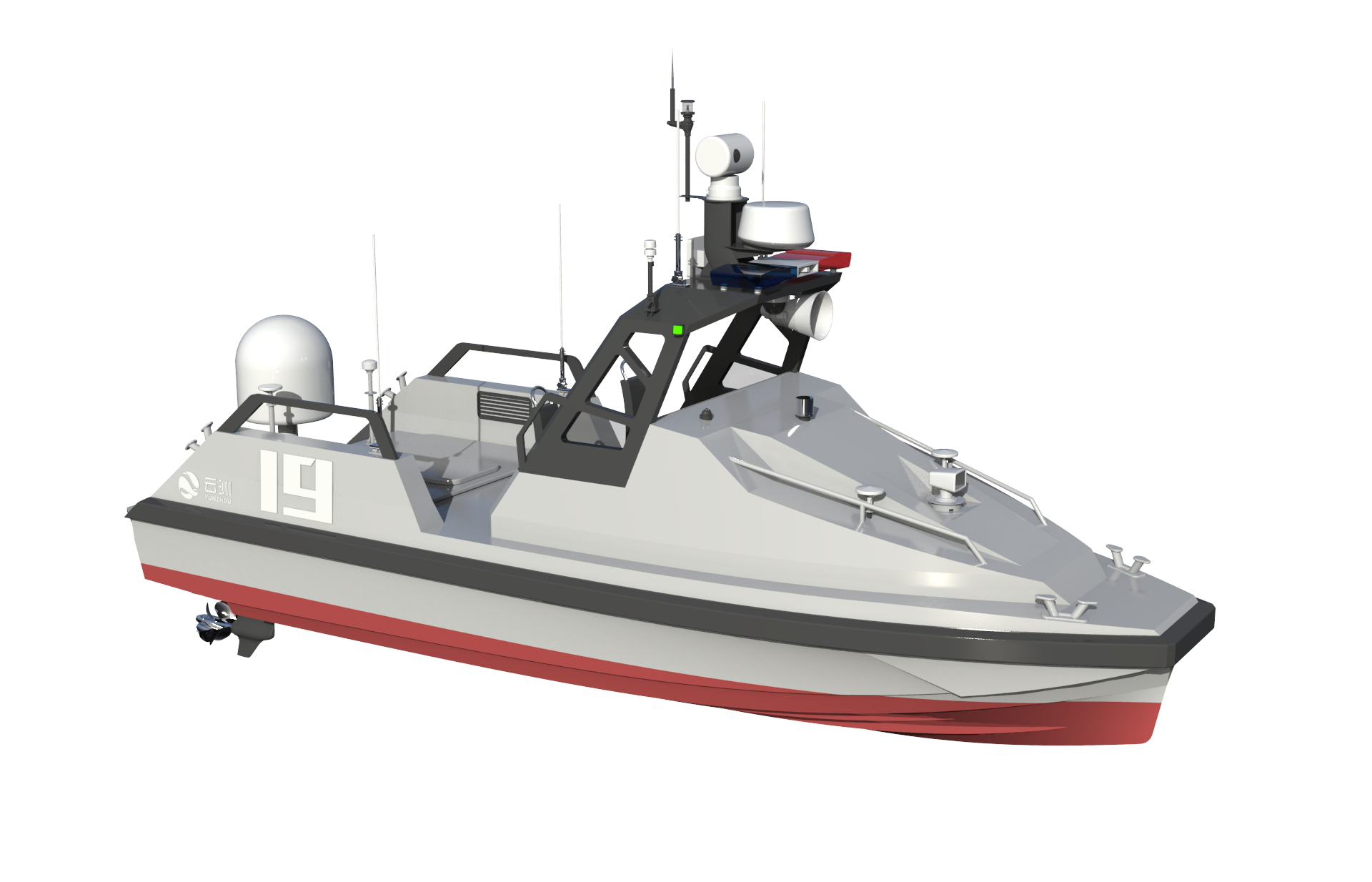

High-Performance Autonomous Patrol Vessel for Maritime Security The CXXCS patrol unmanned vessel represents the next generation of maritime security. Built with a robust aluminum alloy single deep V-shaped hull, this Unmanned Surface Vehicle (USV) is engineered for high-sea condition operations (Working Sea Condition Level 3, Survival Level 4). It is the ideal solution for replacing human labor in dangerous or repetitive waterborne duties, offering 24/7 autonomous patrol and surveillance.

Key Application Scenarios

• Maritime Security & Patrol: Round-the-clock fixed-point waterborne duty and vigilance.

• Law Enforcement: Anti-smuggling operations and suspect vessel tracking.

• Reconnaissance: Real-time evidence collection in oceans, ports, lakes, and rivers.

• Evacuation & Rescue: Emergency response support.

Core Functional Characteristics

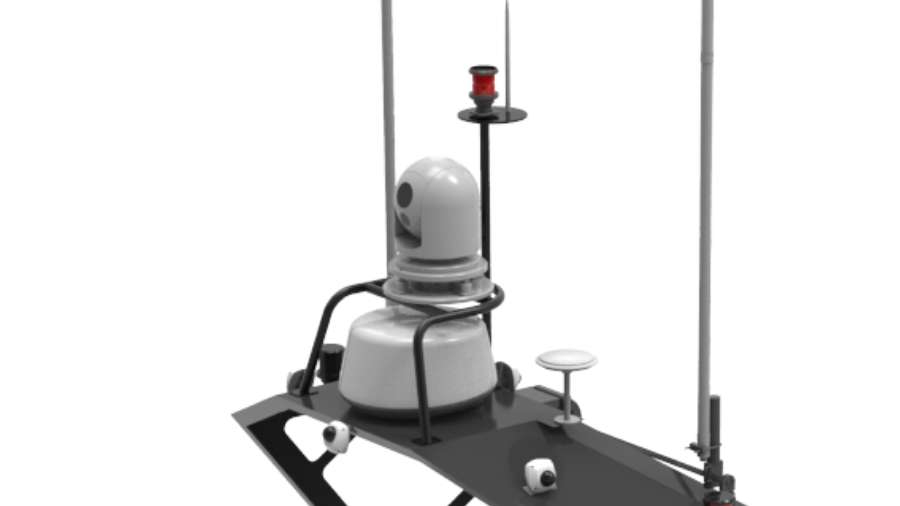

• Advanced Tracking & Imaging: Equipped with an electro-optical pod for real-time, high-definition video transmission. Precisely locks onto waterborne targets and rapidly tracks suspicious vessels.

• High Speed & Stability: Cruising speed of 24 knots with a maximum speed of ≥35 knots.

• Heavy Load Capacity: 500kg carrying capacity allows for the integration of multiple tactical modules.

• Smart Operation Modes: Supports automatic, manual, and remote control operations with multi-network integrated automatic switching.

• Integrated Communication: Seamless connectivity via narrowband, private network, public network, Beidou, and optional satellite communication.

Technical Parameters

• Hull Size: 7.5m (L) x 2.66m (W) x 3.7m (H)

• Hull Material: Aluminum Alloy

• Empty Weight: 4000 kg

• Load Capacity: 500 kg

• Max Speed: ≥ 35 knots (Cruising: 24 knots)

• Range: ≥ 220 nautical miles

• Fuel Tank: 700L x 2

• Propulsion: Spray pumps or in-cabin / out-of-cabin units

Onboard Equipment

• Standard Equipment: Forward-looking Electro-optical Equipment (FEE), PCam, Police light, Loudspeaker, Searchlight, VHF radio.

• Optional Upgrades: Anti-drone system, strong sound rejection (LRAD), microwave rejection systems.
